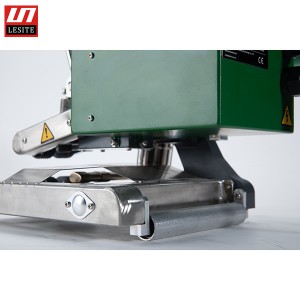

Geo hot air welder LST700

Short description:

Adopt advanced hot air heating system. It is small in size, light in weight, and fast, and can improve welding quality even in corrosive materials and harsh working environments. This machine is specially designed for waterproof projects such as tunnels, subways, water conservancy, aquaculture, biogas plants, landfills, chemical mines, sewage treatment, and roof construction.

send email

Advantage

Specifications

Application

Video

Manual

Advantage

Control System

Advanced intelligent digital control system, temperature and speed can be read on the LCD screen.

Pressure regulation system

Advanced T-shaped boom design and pressure adjustment structure.

roller

Special stainless steel pressure roller, strong pressure.

Heating system

Advanced hot air heating system can improve welding quality even with corrosive materials and harsh working environment.

Previous: Heavy Geographically Heated Wedge Welder Model LST900

next: Ultrasonic welding machine LST-C800

Model	LST700
Rated Voltage	230V/120V
Rated Power	2800W/2200W
Frequency	50/60HZ
Heating Temperature	50~620℃
Welding Speed	0.5-3.5m/min
Material Thickness Welded	0.5mm-2.0mm single layer
Seam Width	15mm*2,Interior Cavity 15mm
Weld Strength	≥85% material
Overlap Width	16cm
Dimensions (length × width × height)	mm
Body weight	7.5kg
Warranty	1 year
